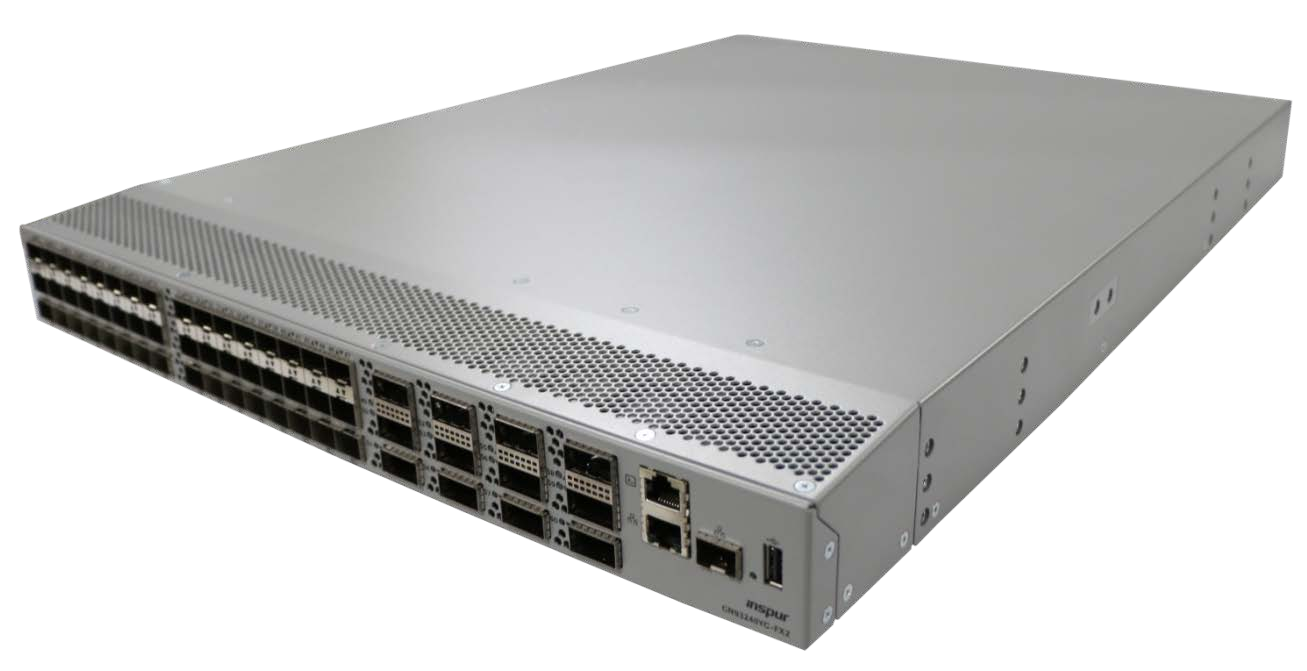

Inspur CN93240YC-FX2 25G ToR switch can realize cloud deployment with low cost and high efficiency,and can also support more terminals. The switch is designed to meet the ever-changing needs of highly scalable data centers and growing enterprises. Inspur CN93240YC-FX2 has higher bandwidth capacity and can provide multiple interface rate options. It can transparently migrate existing data centers from 1 Gbps and 10 Gbps speeds to 25 Gbps on the server side, and from 10 Gbps and 40 Gbps at the aggregation layer. Gbps speed is migrated to 100 Gbps.
| Feature | Description |
|---|---|
| Port | 48 x 1/10/25-Gbps fiber ports and 12 x 40/100-Gbps QSFP28 ports |
| Supported speeds | 1/10/25 Gbps， Downlink ; 40/100 Gbps，Uplink |
| CPU | 4 cores |
| System memory | 16 GB |
| SSD Drive | 128 GB |
| System Buffer | 40 MB |
| Management Port | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB | 1 |
| RS-232 | 1 |
| Power supplies (up to 2) | 750W AC、1100W DC、1100W HVAC/HVDC |
| Fan | 5 |
| Physical dimensions (H x W x D) | （5.3 cm x 43.9 cm x 59.1 cm） |
| Maximum number of Longest Prefix Match (LPM) routes | 896,000 |
| Maximum number of IP host entries | 896,000 |
| Maximum number of MAC address entries | 256,000 |
| Maximum number of multicast routes | 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping：8000 Maximum: 32,000 |
| Maximum number of Inspur CN3000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine: 5000 ngress 2000 egress |
| Maximum number of VLANs | 3,967 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
